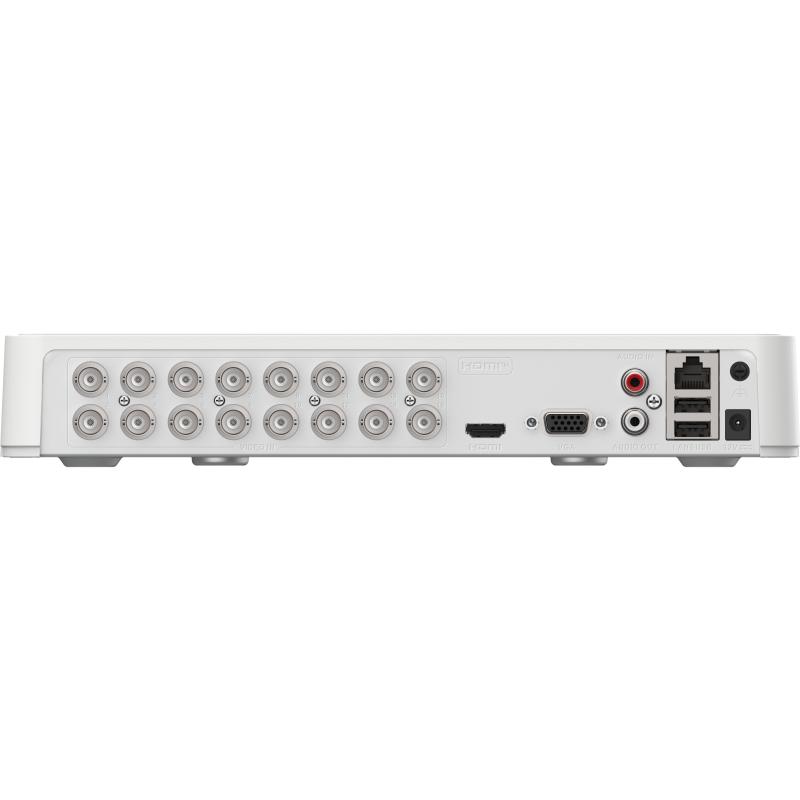

Hikvision 16-ch 1080P Lite Mini 1U H.265 DVR DS-7116HGHI-M1/T

The Hikvision DS-7116HGHI-M1/T is a 16-channel 1080P Lite Mini 1U DVR supporting H.265 video compression and multiple video input formats including HDTVI, AHD, CVI, CVBS, and IP. It features advanced motion detection with deep learning classification for humans and vehicles.

  • Multi-Format Video InputSupports HDTVI, AHD, CVI, CVBS, and IP video inputs for versatile camera compatibility.

  • Advanced Video CompressionUtilizes H.265 Pro+/H.265 Pro/H.265 compression to optimize storage and bandwidth usage.

  • Deep Learning Motion DetectionClassifies motion targets as human or vehicle to enhance detection accuracy and reduce false alarms.

  • High Channel CapacitySupports 16 channels with up to 18 IP camera inputs at resolutions up to 5 MP.

₹10,500

Inclusive of all taxes.

Please contact us for availability and pricing.

BrandHIKVISION
CategoryUncategorized
SKUDS-7116HGHI-M1-T

Description

The Hikvision DS-7116HGHI-M1/T is a 16-channel digital video recorder designed for efficient and high-quality surveillance recording. It supports up to 1080p Lite resolution at 15 frames per second, providing clear video footage suitable for various security applications. The device utilizes advanced H.265 Pro+/H.265 Pro/H.265 video compression technologies, optimizing storage and bandwidth without compromising image quality. This DVR is compatible with multiple video input formats including HDTVI, AHD, CVI, CVBS, and IP cameras, allowing flexible integration with existing surveillance systems. It supports up to 18 IP camera inputs with resolutions up to 5 megapixels, enhancing scalability and coverage. One of the key features is the Deep Learning based Motion Detection 2.0, which classifies motion targets into human and vehicle categories, improving detection accuracy and reducing false alarms. Additionally, the DVR supports two-way audio over coaxial cable on all HDTVI channels, facilitating communication through the surveillance system. The compact 1U mini form factor makes it suitable for installations with limited space while maintaining robust performance. Overall, the DS-7116HGHI-M1/T offers a versatile and intelligent solution for video surveillance needs in various environments.

Product Highlights

Multi-Format Video InputSupports HDTVI, AHD, CVI, CVBS, and IP video inputs for versatile camera compatibility.
Advanced Video CompressionUtilizes H.265 Pro+/H.265 Pro/H.265 compression to optimize storage and bandwidth usage.
Deep Learning Motion DetectionClassifies motion targets as human or vehicle to enhance detection accuracy and reduce false alarms.
High Channel CapacitySupports 16 channels with up to 18 IP camera inputs at resolutions up to 5 MP.
Two-Way Audio SupportEnables audio communication via coaxial cable on all HDTVI channels.

Full Specifications

Video

Maximum Encoding Resolution1080p Lite @ 15 fps
IP Camera InputUp to 18 channels, up to 5 MP resolution

Compression

Video Compression StandardsH.265 Pro+, H.265 Pro, H.265

Motion Detection

TechnologyDeep Learning based human and vehicle classification (Motion Detection 2.0)

Audio

Audio Input MethodAudio via coaxial cable

Form Factor

SizeMini 1U in
