High-Speed WirelessSupports 2.4GHz band with wireless speeds up to 300Mbps using a built-in 9dBi dual-polarized directional antenna.
Durable Outdoor DesignWeatherproof IPX5-rated enclosure made from ASA stabilized plastic, with operating temperature range from -40°C to +70°C.
Advanced TechnologyIncorporates Pharos MAXtream TDMA technology for improved throughput and reduced latency in point-to-multipoint networks.
Flexible Operation ModesSupports AP, Client, AP Router, and AP Client Router (WISP) modes for versatile deployment options.
₹6,499
Inclusive of all taxes.
Add items to your cart. Checkout will open in a future update.
Brandtp-link
SKUCPE210
Description

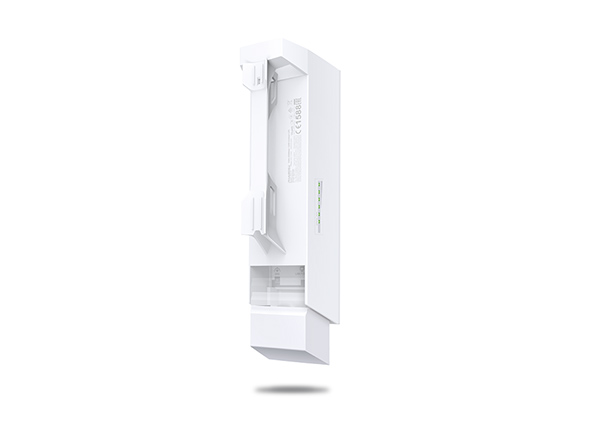

The TP-Link CPE210 is designed for outdoor wireless networking applications, providing a cost-effective solution for long-range data transmission. Operating on the 2.4GHz band, it delivers wireless speeds up to 300Mbps with a built-in 9dBi dual-polarized directional antenna. The device supports multiple operation modes including AP, Client, AP Router, and AP Client Router (WISP), making it versatile for various network setups.
Equipped with a Qualcomm Atheros 560MHz CPU and 64MB DDR2 RAM, the CPE210 ensures stable performance. It features a weatherproof ASA stabilized plastic enclosure rated IPX5, suitable for harsh outdoor environments with operating temperatures from -40°C to +70°C. Protection includes 15kV ESD and 6kV lightning safeguards.
The device supports Pharos MAXtream TDMA technology to improve throughput and reduce latency, ideal for point-to-multipoint applications. Centralized management is available via Pharos Control software, enabling easy device discovery, monitoring, and firmware updates.
Connectivity includes a single 10/100Mbps shielded Ethernet port with Passive PoE support, allowing power and data transmission over a single cable up to 60 meters. Additional features include spectrum analyzer, throughput monitors, and security options such as WPA/WPA2 and WEP encryption.
Overall, the CPE210 is a robust outdoor CPE suitable for extending wireless coverage over distances exceeding 5km, with flexible management and strong environmental protections.
Product Highlights
High-Speed WirelessSupports 2.4GHz band with wireless speeds up to 300Mbps using a built-in 9dBi dual-polarized directional antenna.
Durable Outdoor DesignWeatherproof IPX5-rated enclosure made from ASA stabilized plastic, with operating temperature range from -40°C to +70°C.
Advanced TechnologyIncorporates Pharos MAXtream TDMA technology for improved throughput and reduced latency in point-to-multipoint networks.
Flexible Operation ModesSupports AP, Client, AP Router, and AP Client Router (WISP) modes for versatile deployment options.
Centralized ManagementManaged via Pharos Control software for easy device discovery, monitoring, and firmware upgrades.
Robust ProtectionEquipped with 15kV ESD and 6kV lightning protection for enhanced reliability in outdoor environments.
Full Specifications
General
| Wireless Speed | 5GHz 300Mbps 2.4GHz 300Mbps 2.4GHz 300Mbps |
|---|---|
| Antenna | 13dBi 12dBi 9dBi |
| MIMO | √ √ √ |
| Coverage Range | 15km+ 13km+ 5km+ |
| Compatibility | 802.11a/n 802.11b/g/n 802.11b/g/n |
| Weatherproof Enclosure | √(IPX5) √(IPX5) √(IPX5) |
| Grounding Terminal | √ √ √ |
| ESD Protection | 15kV 15kV 15kV |
| Lightning Protection | 6kV 6kV 6kV |
| Operation Modes | AP / Client / AP Client Router (WISP Client) / AP Router Mode |
| Channel Bandwidth | 5/10/20/40MHz 5/10/20/40MHz 5/10/20/40MHz |
| MAXtream TDMA Mode | √ √ √ |
| Throughtput Monitors | √ √ √ |
| Spectrum Analyzer | √ √ √ |
| Iperf Speed Test Tool | √ √ √ |
| Dimensions( W X D X H ) | 224 x 79 x 60 mm |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
| Management Features | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
| WIRELESS FEATURES Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
| Frequency | 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Button | Remote Reset Button |
| Input | 100-240VAC, 50/60Hz |
| Efficiency | >80% |
| About | Corporate Profile Sustainability Contact Us Privacy Policy |
| Press | News Blog Security Advisory |
| Partners | Partner Program |
| Learning Center | Technology Trends |
Power
| Transmit Power | 23dBm 30dBm 27dBm |
|---|---|
| Power Supply | 24 V V |
| Transmit Power Control | Stepping 1dBm Stepping 1dBm Stepping 1dBm |
| SOFTWARE FEATURES Wireless Configurations | Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/ |
| Transmission Power | 25dBm/316mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
| POE ADAPTER FEATURES Dimensions(W x D x H) | 85.8×43.9×29.7 mm |
| Power Status LEDs | Green |
| Package Content | Outdoor Wireless CPE 24V 0.25A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Max. Power Consumption | 5 Watts Max V |
Connectivity
| Dual Ethernet Ports | - √ - |
|---|---|
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button |
| Interfaces | 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
| Output | • V2.0: 24VDC, 0.6A Max • V3.0: 24VDC, 0.5A Max • V3.20: 24VDC, 0.25A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Ethernet Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in) |
Network
| Pharos Control Supported (Central Network Management Application) | √ √ √ |
|---|
Performance
| HARDWARE FEATURES Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
|---|---|
| System Tools | Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
Memory & Storage
| Memory | 64MB DDR2 RAM, 8MB Flash |
|---|---|
| Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Physical
| Enclosure | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
|---|---|
| Dimensions (W x D x H) | 224 x 79 x 60 mm |
Certifications
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
|---|---|
| OTHERS Certification | CE, FCC, RoHS, IPX5 |
Operating System
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefo |
|---|
Hardware
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
|---|
Antenna
| Type | Built-in 9dBi 2x2 Dual-polarized Directional Antenna |
|---|---|
| Beam Width | 65° (H-Plane) / 40° (E-Plane) |
Enclosure
| Material and Rating | Outdoor ASA stabilized plastic, IPX5 waterproof |
|---|
Wireless
| Standards | IEEE 802.11b/g/n (Pharos MAXtream disabled) |
|---|
Software
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP |
|---|---|
| Management | Pharos Control, HTTP/HTTPS Web, SNMP v2c, SSH |
| Tools | Spectrum Analyzer, Throughput Monitors, Iperf Speed Test, Ping, Traceroute |
