Zebronics Zeb H110M2 LGA 1151 Motherboard

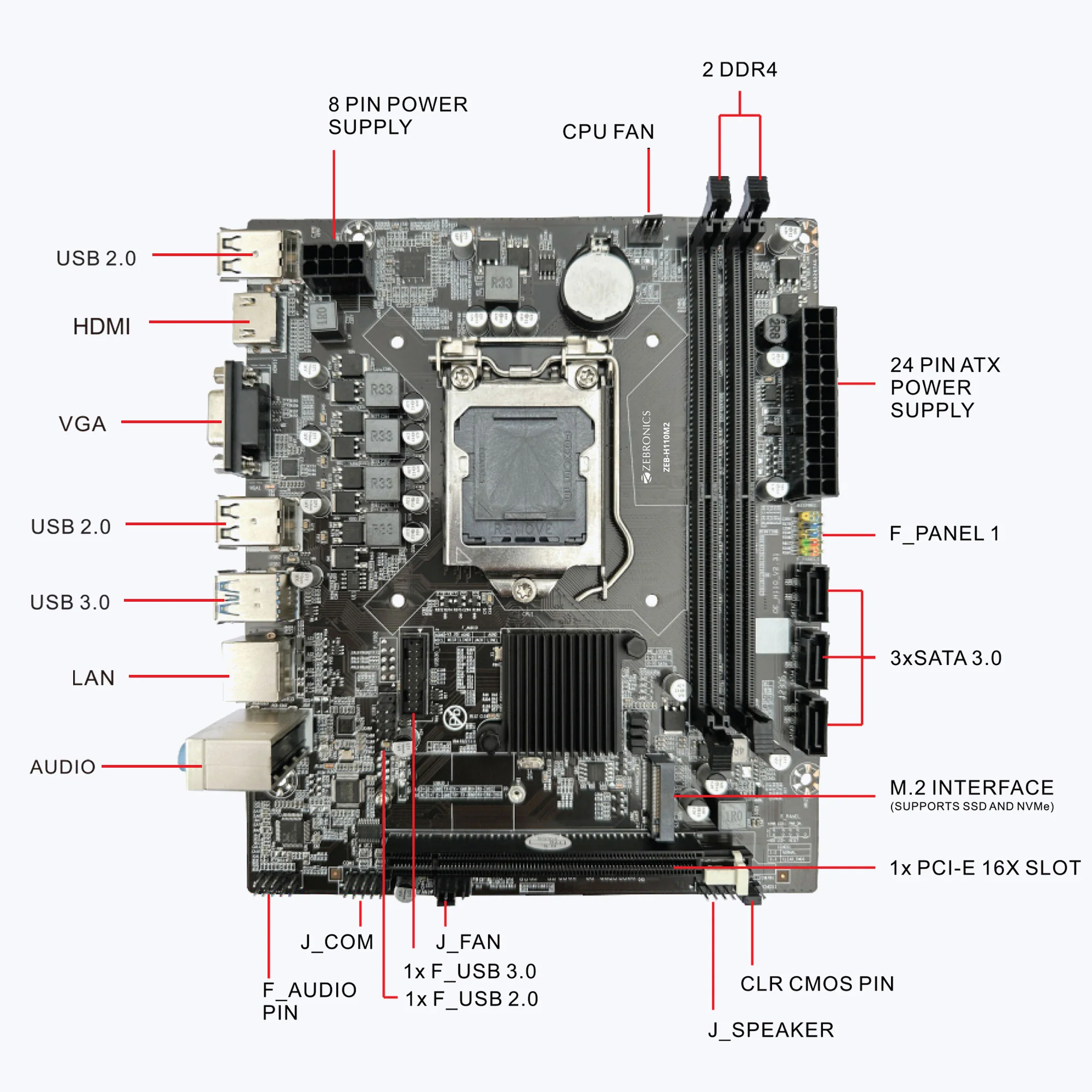

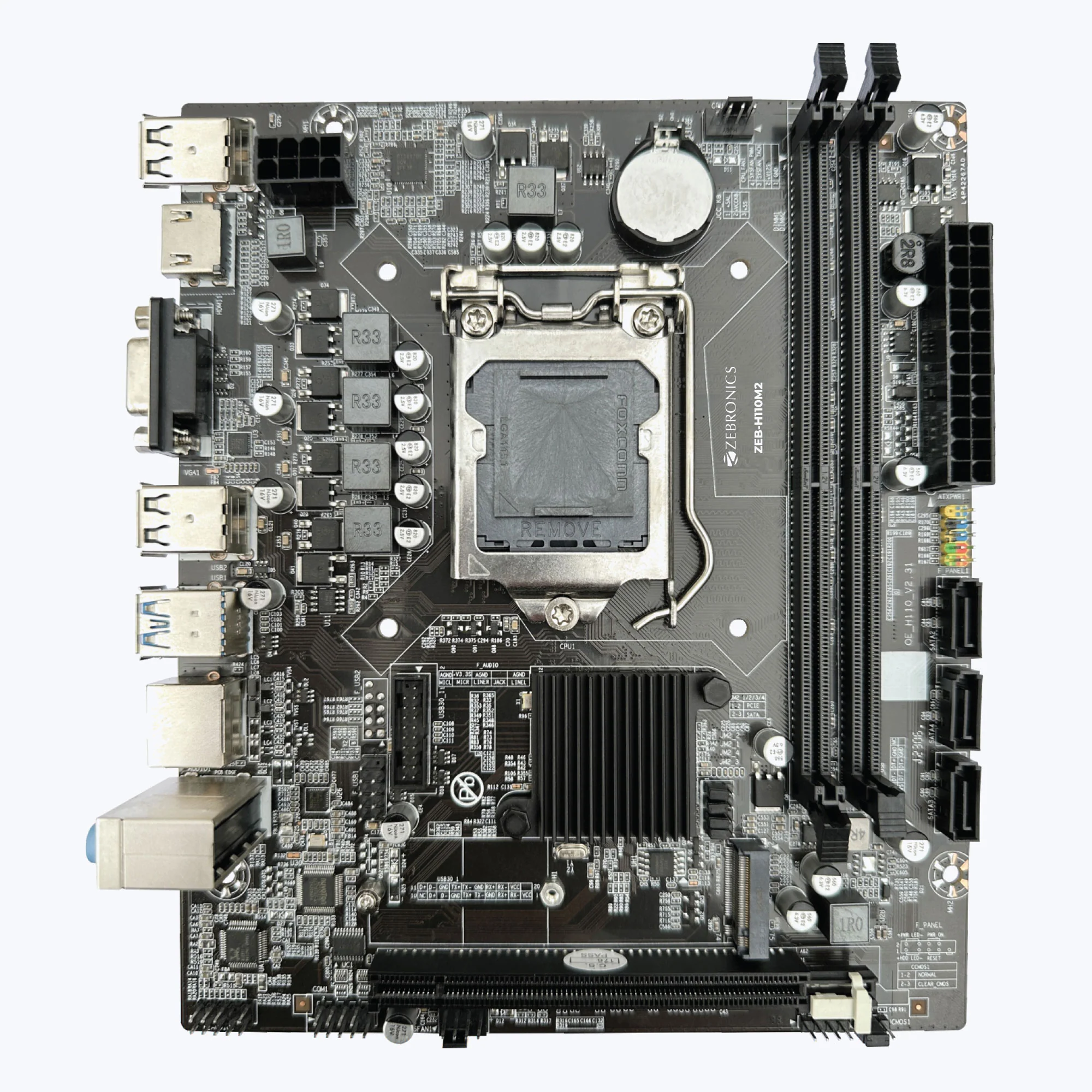

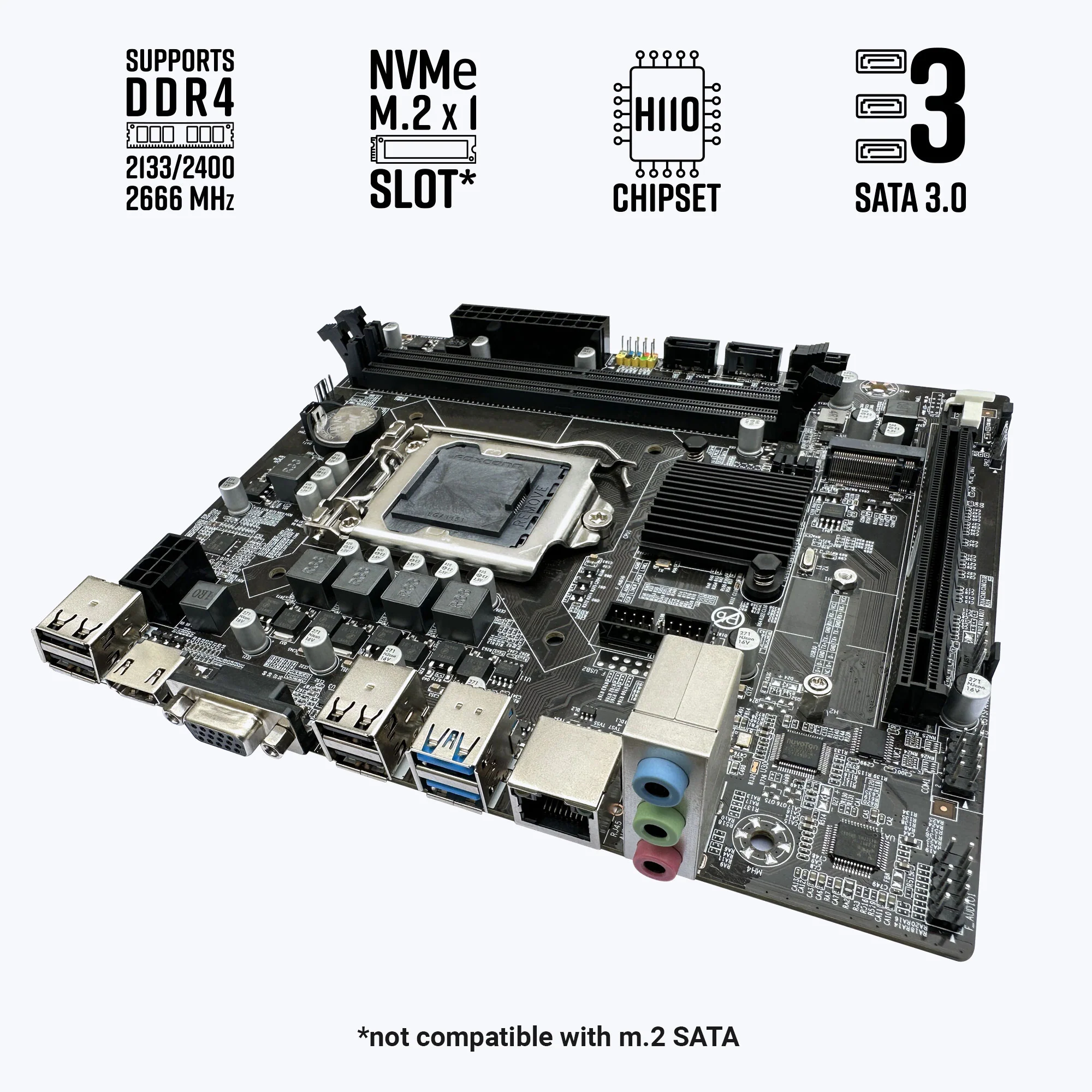

The Zebronics Zeb H110M2 motherboard is designed for Intel processors using the LGA 1151 socket, compatible with 6th, 7th, 8th, and 9th generation Intel Pentium, Celeron, i3, i5, and i7 series CPUs. It is built on the Intel H110 chipset and supports up to 32GB of DDR4 memory across two DIMM slots, compatible with DDR4 speeds of 2133, 2400, and 2666 MHz. The motherboard features an AMI BIOS for system configuration and management. Connectivity options include one HDMI port and one VGA port for display output, four USB 2.0 ports, two USB 3.0 ports for faster data transfer, and an RJ45 port for Ethernet networking. Audio is supported through onboard 5.1 channel HD audio. Expansion capabilities include one PCI Express x16 slot and one NVMe M.2 slot for high-speed storage devices. Power connectors include a 24-pin ATX main power connector and an 8-pin ATX 12V power connector. Additional onboard connectors support front panel audio, USB 2.0 and 3.0, CPU and system fans, speaker, and clear CMOS functionality. Storage options include three SATA 3.0 ports. The motherboard comes in a Micro-ATX form factor and is imported and marketed by Zebronics India Pvt Ltd. Package contents include the motherboard, SATA cable, I/O backplate, driver disc, and user manual. The product is manufactured in China.
